1.5 Remote Tic-Tac-Toe

Requirements

Modify the Secure Tic-Tac-Toe program to permit users to play against each other through simultaneously logged-in accounts.

Give each Creator the ability to invite other Creators to be their friend and to accept friend invitations. Add confirmed friends to the list of players they can invite to play Tic-Tac-Toe (as well as a “Next available human” option).

Acceptance Test Plan

Test by opening two browser windows and logging into a separate account on each. Test each of the clickable elements and test that it displays appropriate errors for invalid entries. Play the two accounts against each other.

Potential Mockups

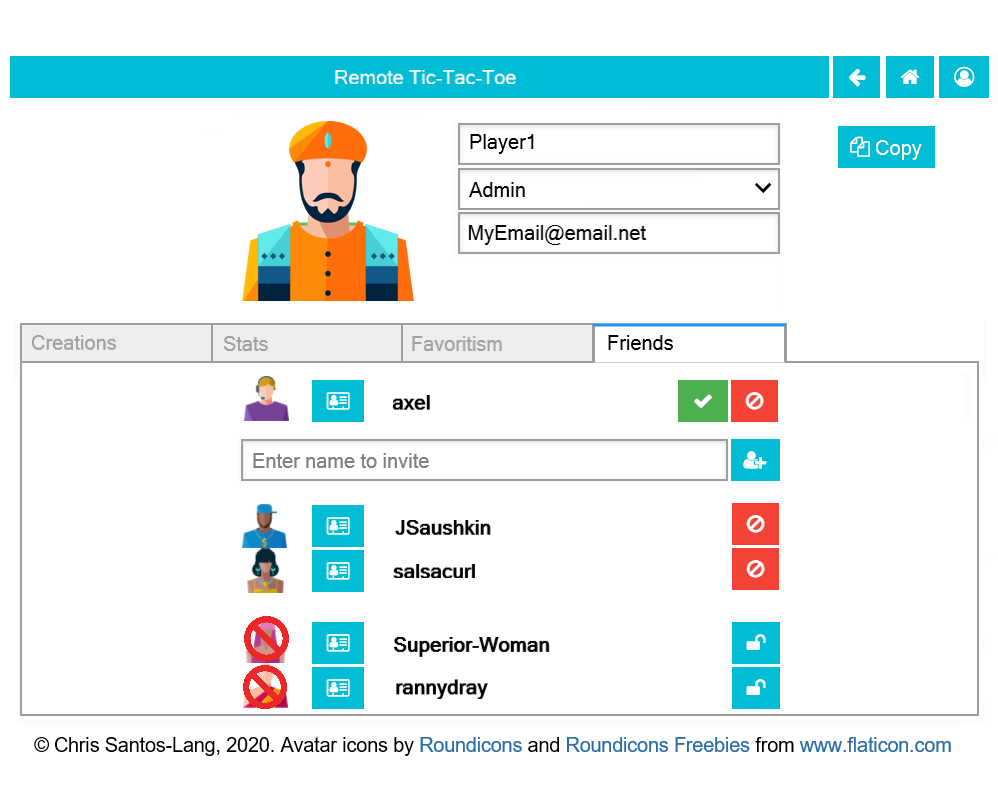

Friends Tab

../_images/Friends.png

  • The “Show Player” buttons (fa-address-card-o) save the record and navigate to the Stats tab of the associated Player

  • The “Accept Friend Request” button (fa-check) moves the player to the friends list (below combobox)

  • The “Ban Friend Requests” button (fa-ban) moves the player to the banned list (below friends)

  • The “Add to Friends” button (fa-user-plus) sends a friend request to the selected player

  • The “Revoke Ban” button (fa-ban) moves the player to the fiends list

Potential Schema

friend_requests: PRIMARY KEY is invitor_id, invited_id:

creator_id  int NOT NULL FOREIGN KEY(players.player_id)
invited_id int NOT NULL FOREIGN KEY(players.player_id)
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
request_status tinyint NOT NULL DEFAULT 0

INDEX creator_id
INDEX invited_id

play_invites: PRIMARY KEY is player_id:

creator_id  int NOT NULL FOREIGN KEY(players.player_id)
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
game_id int NOT NULL FOREIGN KEY (games.game_id)
player2_cat tinyint NOT NULL DEFAULT 0
player2_id int FOREIGN KEY(players.player_id)
player3_cat tinyint NOT NULL DEFAULT 0
player3_id int FOREIGN KEY(players.player_id)
player4_cat tinyint NOT NULL DEFAULT 0
player4_id int FOREIGN KEY(players.player_id)
