1.3 Ranked Tic-Tac-Toe

Requirements

Maintain a saved record of each match (the game played, who played, their forms of augmentation, the outcome), and of each choice made during the match. Allow users to see game stats per form of augmentation for each player (time since the player last played, number of matches played, % won, % draw, and average time to finish their turn). For example, Lora’s win rate at Tic-Tac-Toe when reviewing.

Skill Rating

Maintain a skill-level rating estimate for each player with form of augmentation per game (e.g. Lora’s skill at Tic-Tac-Toe when reviewing), and add the conservate estimate to player stats along with top burst (i.e largest single-game increase in conservative estimate). To each record of a match, add the estimated ratings of each player before the match, the standard deviation in each estimate, and whether the outcome seemed “strategic” or “unstrategic” for each player twenty matches later.

At the beginning of each game, calculate skill “warning flags” for each player in the match. By researching play history, human players could get the information in these flags and could use it to their advantage (e.g. to cooperate across multiple matches); we level the playing-field by making the information available to all players.

Favoritism

To each record of a match, add each player’s expected probability of winning, and the expected probability of a draw. When maintaining skill level estimates, also maintain an account of favors “owed” for each pair of players with form of augmentation (per game). Allow users to view Favoritism Stats for each player, game with form of augmentation and partner/opponent (Win Boost, Kick Back, Draw Boost, Relative Rating, Preference, Favors Owed, and time since last match together.

Acceptance Test Plan

Test each of the clickable elements. Play the Random players against each other for at least 20 games and confirm that Rating Diff, Win Boost, Draw Boost, Kick Back are small. Play against them in a favoring way, letting one win and making the other lose and confirm that you can detect the favoritism. Close Python and reopen it to confirm that it remembers the stats.

Potential Mockups

To get CSV of moves:

redscience moves tic-tac-toe {file}

To get CSV of stats:

redscience player {name} -s {file}

To get CSV of favoritism:

redscience player {name} -f {file}

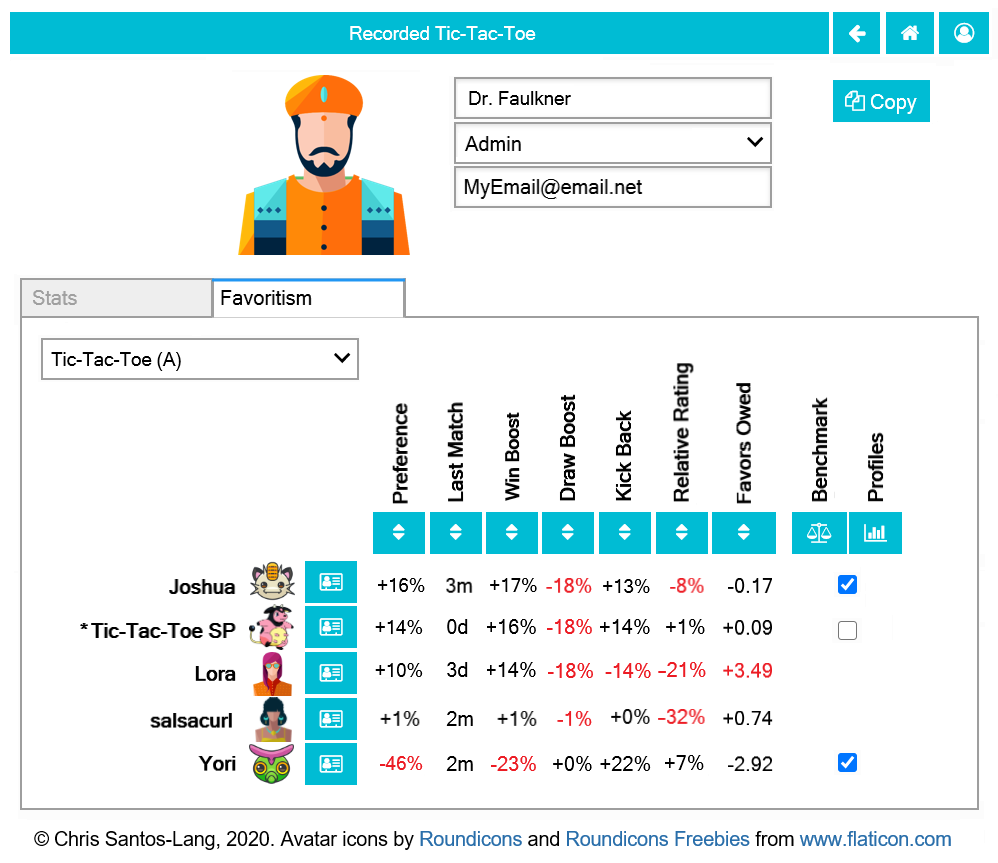

Favoritism Tab

../_images/Favoritism.png

Shown as of 1.2 Recorded Tic-Tac-Toe (to show the evolution of the page). The checkboxes, “Document Social History” button, and “Profile Selected Players” button do not display until 1.8 Educated AI.

  • The game dropdown offers one option for each combination of game this player has played and form of augmentation used.

  • The rows are sorted by Last Match (most recent on top). The “Sort by this Column” buttons re-display the table sorted by the values in the associated column; if already sorted by that column, reverse the order.

  • The “Show Player” buttons (fa-address-card-o) save the record and navigate to the Stats tab of the associated Player.

  • The Relative Rating numbers are “Show Evolution” buttons which save the current record and navigate to the Evolution Page with the selected rule set and “Rating” selected for both the player and the associated other player.

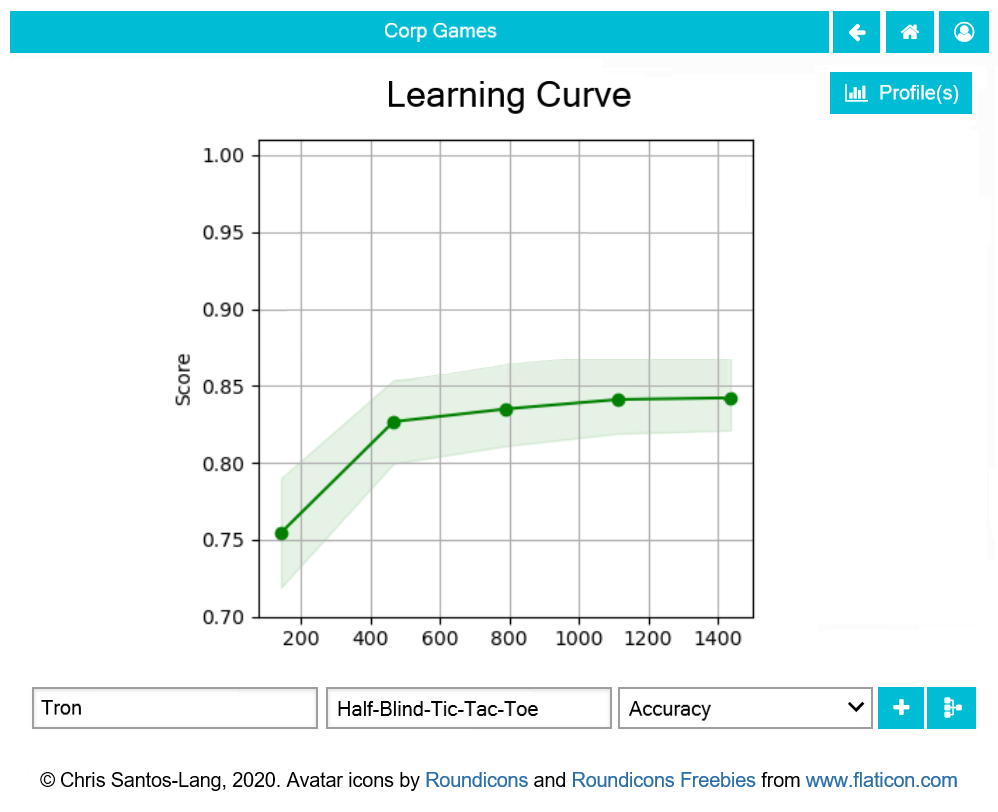

Evolution Page

../_images/LearningCurve.png

Shown as of 1.13 Corp Games (to show the evolution of the page). The “Profile Selected Players” button (fa-bar-chart) and score options other than “Rating” apear in 1.8 Educated AI, and “Show Game Tree” buttons (fa-sitemap) show only for members of a Team or Corp (1.12 Team Games)

  • The player combobox offers all players. If the selected game is not available for the new player, then select the first game available for the new player.

  • The game combobox offers all games played by the selected player. Selecting a game adds the curve to the graph.

  • The score select offers only “Rating” for now, the title is “Rating History”, and the x-axis is observed to date.

  • The “Add Curve” button (fa-plus) inserts an identical row (same player, rule_set, and score) with its own “Add Curve” button, and replaces itself with a “Delete Curve” button. If multiple curves display, also display a legend.

  • The “Delete Curve” button (fa-trash-o) removes that row (and adds an “Add Curve” button to the last).

Formulae

Skill Rating

\(\text{game}_m\):

The game for match \(m\).

\(\text{players}_m\):

The players for match \(m\).

\(\hat{\mu}_{a, g}\) :

The mean skill estimate for player \(a\) on game \(g\). \(\hat{\mu}_{random, g}\) is the mean skill estimate for the random player, \(\hat{\mu}_{a, g, m}\) is the mean skill estimate going into match \(m\), and hat{mu}_{max, g, m} is the highest skill estimate among all players at that time.

\(\hat{\sigma}_{a, g}\) :

The standard deviation in the skill estimate for player \(a\) on game \(g\). \(\hat{\sigma}_{a, g, m}\) is the standard deviation going into match \(m\).

\(R_{a, g}\) :

The conservative skill estimate of player \(a\) on game \(g\)

\[R_{a, g} = \hat{\mu}_{a, g} - 3 \hat{\sigma}_{a, g}\]
\(\text{top burst}_{a, g}\) :

The highest growth in conservative skill estimate of player \(a\) on game \(g\)

\[\text{top burst}_{a, g} = max \{ R_{a, g, 1} - R_{a, g, 0} \dots R_{a, g, m} - R_{a, g, m-1} \}\]
\(\text{relative rating}_{a, b, g}\) :

The relative skill rating of player \(b\) on game \(g\), compared to player \(a\)

\[\text{relative rating}_{a, b, g} = \frac{R_{b, g}} {R_{a, g}} - 1\]

Stategic Outcomes

\(\text{strategic}_(m, a)\) :

Whether the outcome of match \(m\) seemed “strategic” for player \(a\) twenty matches later.

\[\begin{split}= \begin{cases} \text{Strategic} & \quad \text{if } \displaystyle\sum_{i=(m+22)}^{m+26} \hat{\mu}_{a, g, i} - \displaystyle\sum_{i=(m-2)}^{m+2} \hat{\mu}_{a, g, i} \ge 2 \hat{\sigma}_{a, g, m+20}\\ & \quad \text{or } \hat{\mu}_{a, g, m+20} \ge \hat{\mu}_{max, g, m+20} - \hat{\sigma}_{a, g, m+20}\\ \\ \text{Unstrategic} & \quad \text{if } \displaystyle\sum_{i=(m-2)}^{m+2} \hat{\mu}_{a, g, i} - \displaystyle\sum_{i=(m+22)}^{m+26} \hat{\mu}_{a, g, i} \ge 2 \hat{\sigma}_{a, g, m+20} \end{cases}\end{split}\]

Favoritism

\(X_m(x)\) :

The occurence of event \(x\) in match \(m\).

\(E_m(x)\) :

The expected probability of event \(x\) in match \(m\), given the skill estimates going into the match

\[E_m(x) = P(X_m(x) \mid \{\hat{\mu}_{a, m}, \hat{\sigma}_{a, m} : a \in \text{players}_m \})\]
\(\text{win boost}_{a, b, g}\) :

The boost to player \(a\)’s win rate on game \(g\) in the last ten matches with player \(b\)

\[\begin{split}\text{win boost}_{a, b, g} = \displaystyle\sum_{\substack{ i=(n-10) \\ game_i = g \\ players_i \subset \{a, b\} }}^{n} \frac{X_i(win_a) - E_i(win_a)}{10}\end{split}\]
\(\text{kick back}_{a, b, g}\) :

The boost to player \(b\)’s win rate on game \(g\) in the last ten matches with player \(a\)

\[\begin{split}\text{kick back}_{a, b, g} = \displaystyle\sum_{\substack{ i=(n-10) \\ game_i = g \\ players_i \subset \{a, b\} }}^{n} \frac{X_i(win_b) - E_i(win_b)}{10}\end{split}\]
\(\text{draw boost}_{a, b, g}\) :

The boost to player \(a\)’s draw rate on game \(g\) in the last ten matches with player \(b\)

\[\begin{split}\text{draw boost}_{a, b, g} = \displaystyle\sum_{\substack{ i=(n-10) \\ game_i = g \\ players_i \subset \{a, b\} }}^{n} \frac{X_i(draw) - E_i(draw)}{10}\end{split}\]
\(\text{preference}_{a, b, g}\) :

Player \(a\)’s preference to play with player \(b\) on game \(g\)

\[\text{preference}_{a, b, g} = \text{draw boost}_{a, b, g} + 2 (\text{win boost}_{a, b, g})\]
\(\text{favor}_{a, b, m}\) :

The favor player performed by \(a\) for player \(b\) in match \(m\).

\[\begin{split}\text{favor}_{a, b, m} = \begin{cases} E_m(win_a) + E_m(draw) & \quad \text{if player } b \text{ wins match } m \\ - E_m(win_b) - E_m(draw) & \quad \text{if player } a \text{ wins match } m \\ E_m(win_a) - E_m(win_b) & \quad \text{if they draw} \end{cases}\end{split}\]
\(\text{favors owed}_{a, b, m}\) :

The favors player \(a\) owes player \(b\) in match \(m\)

\[\begin{split}\text{favors owed}_{a, b, m} = \displaystyle\sum_{\substack{ i=0 \\ \text{game}_i = \text{game}_m }}^{m} \text{favor}_{b, a, i}\end{split}\]
\(\text{default}_{a, b, g}\) :

Whether player \(a\)’s debt to player \(b\) on game \(g\) is in default

\[\text{if } \text{favors owed}_{a, b, m} > min \{ 1, max \{ \text{favors owed}_{a, b, n} : \text{game}_n = \text{game}_m, n < m \} \}\]

Social Flags

\(\text{Random}_{a, m}\) :

True if player \(a\) presents as random in match \(m\)

\[\text{ if } \hat{\mu}_{a, \text{game}_m} = \hat{\mu}_{random, \text{game}_m} \pm 2 \hat{\sigma}_{a, \text{game}_m}\]
\(\text{Novice}_{a, m}\) :

True if player \(a\) presents as a novice in match \(m\)

\[\begin{split}\text{ if } \hat{\mu}_{a, \text{game}_m} < min \{ & ( min \{ \hat{\mu}_{\text{players}_m, \text{game}_m, m} \} + \hat{\sigma}_{a, \text{game}_m}), \\ & ( max \{ \hat{\mu}_{\text{players}_m, \text{game}_m, m} \} - \hat{\sigma}_{a, \text{game}_m}) \}\end{split}\]

If player \(a\) is a teammate of the user (e.g. Partner), or is not the first on its team to play after the user, calculate the flag as follows instead:

\[\text{ if } \hat{\mu}_{a, \text{game}_m} < \hat{\mu}_{partner, \text{game}_m} - 3 \hat{\sigma}_{a, \text{game}_m}\]
\(\text{Expert}_{a, m}\) :

True if player \(a\) presents as an expert in match \(m\)

\[\begin{split}\text{ if } \hat{\mu}_{a, \text{game}_m} > max \{ & ( min \{ \hat{\mu}_{\text{players}_m, \text{game}_m, m} \} + \hat{\sigma}_{a, \text{game}_m}), \\ & ( max \{ \hat{\mu}_{\text{players}_m, \text{game}_m, m} \} - \hat{\sigma}_{a, \text{game}_m}) \}\end{split}\]

If player \(a\) is a teammate of the user (e.g. Partner), or is not the first on its team to play after the user, calculate the flag as follows instead:

\[\text{ if } \hat{\mu}_{a, \text{game}_m} > \hat{\mu}_{partner, \text{game}_m} + 3 \hat{\sigma}_{a, \text{game}_m}\]
\(\text{debt}_{a, m}\) :

The favors owed by player \(a\) to all other players in match \(m\)

\[\text{debt}_{a, m} = \displaystyle\sum_{i \in players_m} \text{favors owed}_{a, i, m}\]
\(\text{Richer}_{a, m}\) :

True if player \(a\) presents as richer than the user in match \(m\)

\[\begin{split}\text{ if } & \text{debt}_{a, m} < \text{debt}_{user, m} \\ & \text{ or } ( (\text{debt}_{a, m} = \text{debt}_{user, m}) \text{ and } (R_{a, text{game}_m} > R_{user, text{game}_m} ))\end{split}\]
\(\text{social flags}_{a, m}\) :

A set of flags describing player \(a\) relative to the user on match \(m\)

\[\begin{split}= \begin{cases} 011 \text{ Random} & \quad\text{if } \text{Random}_{a, m}\\ 111 \text{ Antisocial} & \quad\text{else if } \text{default}_{a, user, game_m}\\ 110 \text{ Richer Novice} & \quad\text{else if } \text{Richer}_{a, m} \text{ and } \text{Novice}_{a, m}\\ 101 \text{ Richer Expert} & \quad\text{else if } \text{Richer}_{a, m} \text{ and } \text{Expert}_{a, m}\\ 100 \text{ Richer} & \quad\text{else if } \text{Richer}_{a, m}\\ 010 \text{ Poorer Novice} & \quad\text{else if } \text{Novice}_{a, m}\\ 001 \text{ Poorer Expert} & \quad\text{else if } \text{Expert}_{a, m}\\ 000 \text{ Poorer} & \quad\text{otherwise } \end{cases}\end{split}\]

Potential Schema

matches: PRIMARY KEY is match_id:

match_id int NOT NULL AUTO_INCREMENT
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
creator_id  int NOT NULL FOREIGN KEY(players.player_id)
game_id int NOT NULL FOREIGN KEY (games.game_id)
player1_id int NOT NULL FOREIGN KEY(players.player_id) (player order by id)
player1_tool_cat tintyint NOT NULL DEFAULT 0
player1_outcome_cat tintyint NOT NULL DEFAULT 0
player1_mu int NOT NULL DEFAULT 0
player1_sigma int NOT NULL DEFAULT 0
player2_id int NOT NULL FOREIGN KEY(players.player_id)
player2_tool_cat tintyint NOT NULL DEFAULT 0
player2_outcome_cat tintyint NOT NULL DEFAULT 0
player2_mu int NOT NULL DEFAULT 0
player2_sigma int NOT NULL DEFAULT 0
player3_id int FOREIGN KEY(players.player_id)
player3_tool_cat tintyint NOT NULL DEFAULT 0
player3_outcome_cat tintyint NOT NULL DEFAULT 0
player3_mu int NOT NULL DEFAULT 0
player3_sigma int NOT NULL DEFAULT 0
player4_id int FOREIGN KEY(players.player_id)
player4_tool_cat tintyint NOT NULL DEFAULT 0
player4_outcome_cat tintyint NOT NULL DEFAULT 0
player4_mu int NOT NULL DEFAULT 0
player4_sigma int NOT NULL DEFAULT 0
draw_fl bool NOT NULL DEFAULT 0
duration time NOT NULL DEFAULT 0
move_tally int NOT NULL DEFAULT 0
real_match_id FOREIGN KEY(games.match_id)
explorer_id int FOREIGN KEY(players.player_id)
taught_fl bool NOT NULL DEFAULT 0

INDEX game_id, player1_id, player2_id, player3_id, player4_id, match_id

moves: PRIMARY KEY is match_id, move_num:

match_id int NOT NULL FOREIGN KEY(games.match_id)
move_num int NOT NULL AUTO_INCREMENT
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
creator_id  int NOT NULL FOREIGN KEY(players.player_id)
game_id int NOT NULL FOREIGN KEY (games.game_id)
decision_interval int NOT NULL DEFAULT 0
to_spot int NOT NULL DEFAULT 0
rel_color_cat tinyint NOT NULL DEFAULT 0 (player color, next color,…)
shape_cat tinyint NOT NULL DEFAULT 0
from_spot int NOT NULL DEFAULT 0
outcome_cat tinyint NOT NULL DEFAULT 0
predicted_outcome_cat tintyint NOT NULL DEFAULT 0

UNIQUE INDEX creator_id, created_ts, outcome_cat, predicted_outcome_cat
INDEX match_id

stats: PRIMARY KEY is player_id, aug_cat , game_id:

player_id int NOT NULL FOREIGN KEY(players.player_id)
tool_cat tinyint (review, debate, etc)
game_id int NOT NULL FOREIGN KEY (games.game_id)
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
creator_id  int NOT NULL FOREIGN KEY(players.player_id)
last_match_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
played_tally int NOT NULL DEFAULT 0
won_tally int NOT NULL DEFAULT 0
lost_tally int NOT NULL DEFAULT 0
decision_interval_tally int NOT NULL DEFAULT 0
rating_mu int NOT NULL DEFAULT 0
rating_sigma int NOT NULL DEFAULT 0
top_burst int NOT NULL DEFAULT 0
explore_tally int NOT NULL DEFAULT 0
critic_tally int NOT NULL DEFAULT 0

INDEX player_id
UNIQUE INDEX game_id, rating_mu, player_id

favor_stats: PRIMARY KEY is player1_id, player1_tool_cat, player2_id, player2_tool_cat game_id:

player1_id int NOT NULL FOREIGN KEY(players.player_id)
player1_tool_cat tintyint NOT NULL DEFAULT 0
player2_id int NOT NULL FOREIGN KEY(players.player_id)
player2_tool_cat tintyint NOT NULL DEFAULT 0
game_id int NOT NULL FOREIGN KEY (games.game_id)
created_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
creator_id  int NOT NULL FOREIGN KEY(players.player_id)
last_match_ts timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
played_tally int NOT NULL DEFAULT 0
win_boost float
kick_back float
draw_boost float
preference float
debt float
debt_default_fl bool NOT NULL DEFAULT 0

INDEX player_id

Hints

Rotation

def rotated(label):
  return widgets.HTML(value='''
    <p style='
      writing-mode: vertical-lr;
      transform: rotate(180deg);
      display: inline-block;
    '>''' + label + "</p>")

widgets.HBox([rotated("Hello1"), rotated("Hello2")])
